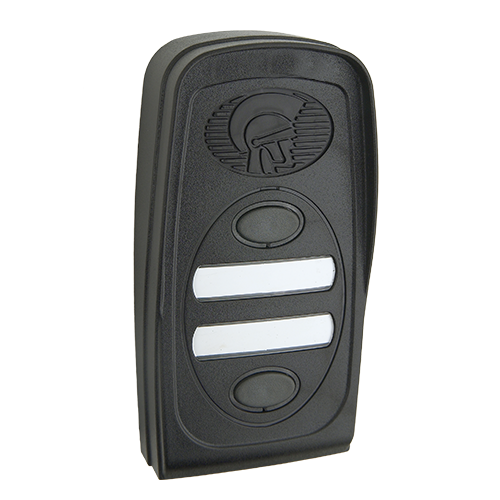

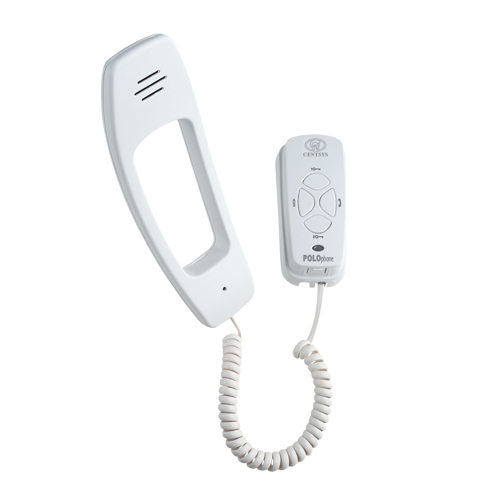

CENTSYS INTERCOM HANDSET – AUDIO INTERCOM SYSTEM
$1.00
SAY HELLO TO CENTSYS’ INTERCOM HANDSET!
Audio Intercom System.
The CENTSYS Intercom Handset is a uniquely styled intercom system that offers outstanding features, state of the art design and excellent value for money. The CENTSYS Intercom Handset is also a proud winner of the prestigious SABS Design Institute’s Design Excellence Awards.
Description
MAIN FEATURES:
- Only two wires for a simple, quick and easy installation.
- Expandable up to five components with a maximum of two Entry Panels.
- Each panel fitted with two Call Buttons.
- Single or dual call button Modes of Operation.
- Intercommunication between two groups of Handsets.
- Award-winning style Handset.
- Each handset incorporates:
– Gate release for each Entry Panel.
– Auxiliary control button.
– Intercommunication Call Button.
– Gate status LED. - 12V DC operation with optional battery backup.
- Built-in lightning protection.
- To maximise the security of the installation an optional switch [1] may be fitted
CENTSYS Intercom Handset TECHNICAL DATA:
| DESCRIPTION | ||
|---|---|---|
| Input Voltage 1 | 12V – 14V DC supplied at anyone of the components 1 | |
| Current Draw | Quiescent – 150mA ±60mA for a One-to-One kit maximum – 200mA | |
| Speech Volume | Adjustable at each Entry Panel and handset | |
| Wiring | Two common wires polarised for speech, call and lock release | |
| Ring tone | Electronic while button is depressed with separate tones when calling from each Entry Panel in a system or between groups of handsets | |
| Call Confirmation at Entry Panel | 1 | |
| Wiring Distance | Refer to thickness chart in the Manual | |
| Gate/Door Release | Potential-free normally-open contact | |
| Handset Auxiliary Contact | Requires separate wiring via two-wire bus | |
| Operating Temperature | -20°C to +50°C | |
| Humidity | 0 – 90% (non-condensing) | |
| Degree of Protection | IP55 | |
| Surge Protection | 1 | |
| Packaging Dimensions | ||
| Handset | Length: 70mm x Width: 47mm x Height: 211mm | |
| Entry Panel | Length: 70mm x Width: 40mm x Height: 150mm |
[*] – If the 12V DC gate motor supply dips when the motor starts up and the intercom is being used at the same time, the speech quality might be affected.
