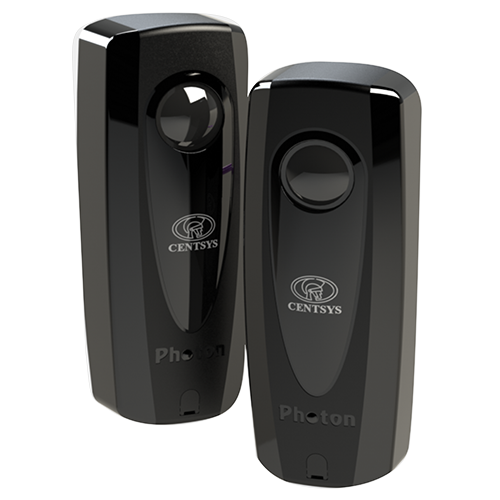

PHOTON II – INFRARED GATE SAFETY PE BEAMS WITH WIRELESS TECHNOLOGY
$1.00
Safety has never been so quick and easy – thanks to wireless technology! Introducing CENTSYS’ Photon II infrared gate safety PE beams with a wireless transmitter. Photon II makes short work of achieving a safe automation system for even the most challenging of installations. With a wireless transmitter there’s no need to tunnel under the driveway. Simply align, attach and you’re away!
MAIN FEATURES:

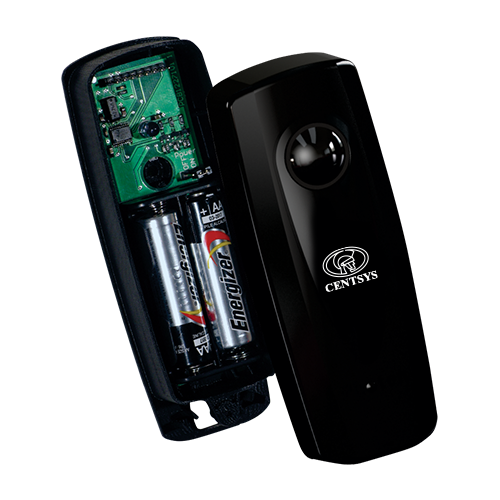

- Transmitter is wireless and battery-operated saving time and money.
- Two year battery life using two AA Alkline batteries (included).
- 30 metre operating range – ideal for almost any entrance gate.
- Fully ant-proof and weather-resistant enclosure for greater reliability.
- Transmitter provides audible feedback for easy setup and battery-low indication.
- Low power consumption throughout the system for greater efficiency.
- Installer Mode with audible feedback makes alignment a dream.
- Elegant slimline construction – only 50mm wide.
- Compatible with Intruder-detection Alarms for enhanced perimeter security3.
Description
PHOTON INFRARED GATE SAFETY PE BEAMS WITH WIRELESS TECHNOLOGY TECHNICAL DATA:
| DESCRIPTION | ||
|---|---|---|
| Power Supply Transmitter | 2 x AA Alkaline Batteries (Supplied) Only replace with alkaline batteries; do not use rechargeable batteries with this product | |
| Receiver | 12 – 24V AC 12 – 30V DC | |
| Receiver Power Consumption | 30mA @ 12V DC | |
| Transmitter Battery Life | Minimum 2 years | |
| Battery Low Indication | Audible Beep | |
| Specified Operating Distance | 30m | |
| Alignment | Automatic – 1m² @ 10m (circular area – assumes parallel surface) | |
| Output Contact | Fail-safe, N/C and N/O, potential free contact | |
| Output Contact Rating | 3A @ 30V DC Non-inductive | |
| Operating Temperature | -15°C – +65°C | |
| Operating Humidity | 0 – 90° Non-condensing | |
| Housing Material | 0 – 90° Non-condensing | |
| Degree of Protection | IP54 |
