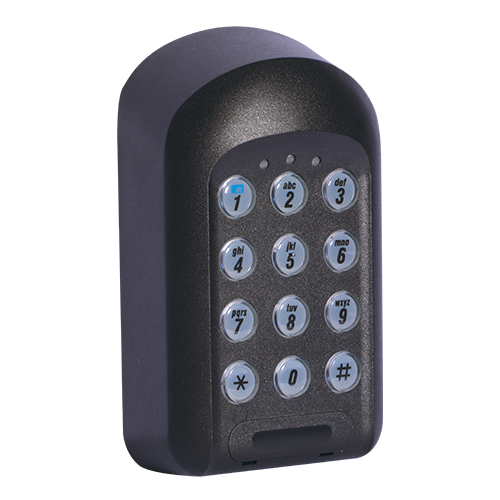

SMARTGUARD – HARD-WIRED ACCESS CONTROL KEYPAD
$1.00
The SMARTGUARD keypad can accommodate up to 1000 unique PIN codes with any user-defined length from one to ten digits. There are three separate outputs, each configurable to either latching or non-latching. Such functionality caters for many different scenarios for example, a motorised gate entrance may be opened fully using one code, activate the pedestrian opening using another, and switching on the house alarm using a third. User codes can also be selectively deleted without affecting other codes stored in the memory. The keypad also boasts a “downcounter” allowing select codes to have a limited number of uses. This is ideal for granting single occasion access, for example to an armed response company with the code deleting itself after use. The addition of the CENTSYS SmartSwitch maximises security and ensures that even with the keypad mounted outside the property, it cannot be “hotwired” and the integrity of the site jeopardised. The same memory module used on the SupaNOVA may also be used on the SMARTGUARD access control keypad, allowing all the settings and codes to be backed up and restored in seconds.
Description
MAIN FEATURES:
- SMARTGUARD for hard-wired installations.
- 1000 unique codes using one to ten digits.
- Three channel output.
- Selectively add and delete user codes.
- Backup Memory Module.
- Limited uses counter.
- Fully weatherproof with backlit keypad.
- SmartSwitch for tamper-proof outputs.
SMARTGUARD TECHNICAL DATA:
| DESCRIPTION | ||
|---|---|---|
| Supply voltage | 12V – 24V AC/DC | |
| Current | 32mA (standby) – 180mA (max) | |
| Operating temperature | -20ºC to +60ºC | |
| Outputs | Three (One relay output, two open collector outputs) | |
| Output pulse time range | 1 – 255 sec (adjustable) or latched | |
| Memory | 1000 user codes | |
| Size | 132mm x 80mm x 38mm | |
| Housing material | Polycarbonate | |
| Degree of protection | IP55 | |
| Colour | Black |
