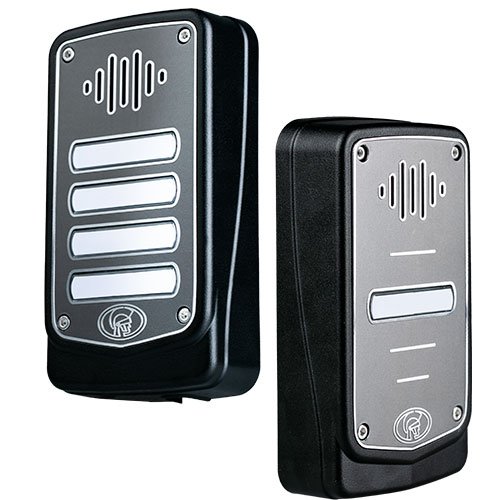

CENTSYS Metal Gate Station
$1.00
Say “hello” to the new look of go-anywhere security and convenience.
The G-SPEAK ULTRA Intercom Gate Station is now available in a bold and modern metal design, that not only enhances aesthetic appeal, but offers improved tamper protection.
The brand new Metal Gate Station makes for a beautiful addition to your gate, while simultaneously delivering a security upgrade thanks to its rugged construction that offers exceptional protection against tampering and vandalism.
Description
FEATURES AND BENEFITS
Answer your intercom from anywhere, using your cellular device
– enhanced security and convenience
- No messy and expensive wiring
- 1, 2 or 4 call buttons with the ability to add two numbers per button and Time Barring configurable per button (for example; automatically disable primary button at night)
- Backlit button(s)
- Rugged aluminium enclosure
- The mounting holes are compatible with our Universal Gooseneck1
1. Requires a Gooseneck backing plate to maintain IP rating.
| Technical Data | METAL GATE STATION1 | |
|---|---|---|
| Operating voltage2 | 7.4V DC as supplied by the G-SPEAK ULTRA3 | |
| Current draw | 11mA | |
| Speech volume | Adjustable via G-WEB | |
| Wiring | 6 wire connection (power, audio and mic) | |
| Ring tone | Electronic when button is depressed | |
| Call confirmation | Yes | |
| Call buttons | 1, 2 or 4 (illuminated with labels) | |
| Operating temperature | -20°C to +50°C | |
| Humidity | 0 – 90% non-condensing | |
| Degree of protection | IP544 | |
| Dimensions | 97mm wide x 40mm deep x 178mm high |
- Requires a G-SPEAK ULTRA device, as the Gate Station cannot be used on its own.
- If the 12V DC gate motor supply dips when the motor starts up and the intercom is being used at the same time, the speech quality might be affected.
- The Gate Station must only be powered via a G-SPEAK ULTRA Device.
- A Gooseneck backing plate is required when mounting onto a Gooseneck, to maintain IP rating.
